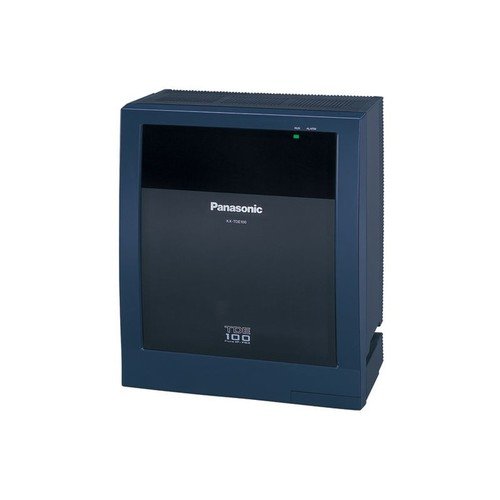

Panasonic TDE100

Category:

Description

Panasonic KX-TDE100 Features

  • Panasonic KX-TDE100 business telephone system is a hybrid VoIP PBX that is ideal for companies with 25 to 65 users who would like to take advantage of the benefits of connecting to a PRI or T-1 Circuit as well as having the ability to have remote IP Phones connected to the system.
  • The system has the ability to have up to 4 T-1 or PRI Circuits and can accommodate DID numbers. For companies that would like to connect to traditional POTS lines, the system is a great fit.
  • Alternatively for those that would like to take advantage of the benefits of Voice over IP, the Panasonic TDE Phone System can accommodate many of their needs. It has the ability to network multiple sites and support Centralized Voicemail. The optional gateway card will also allow a company to have one receptionist answer the phones for multiple sites and see whether or not someone is on the phone. The call can then be transferred to the appropriate site by 3 digit or 4 digit dialing to avoid a toll charge.
  • Voice over IP can also benefit your company by helping you to save money on your telephone bill, avoid heavy taxes on your telephone lines, and move telephone numbers easily and inexpensively through the use of SIP Lines. You may also connect remote phones to your TDE telephone system with the NT300 series phones or Polycom Soundpoint SIP Phones.
  • The TDE100 supports up to 96 digital phones such as Panasonic DT300 Series Phones or the KX-T7600 Series Phones. It also supports up to 48 Analog Proprietary Phones such as the KX-T7700 series, or 96 Single Line Telephones. This telephone system is also compatible with DECT 6.0 Wireless Handsets with cell stations for maximum wireless coverage in your office. You may install up to 128 wireless handsets to your system.
  • The KX-TDE100 includes a built in CTI Link card that will allow you to program your phone system directly through your LAN. A system administrator can log into the system and make programming changes right from their computer, rather than having to program through a telephone, or having to connect a computer to the phone system.
  • It also includes a Music on Hold port for music or message on hold, and a paging port for overhead paging systems. Panasonic KX-TDE100 is a perfect solution for a small to medium sized business.

Panasonic KX-TDE100 Specifics

  • Max CO Lines: 128
  • Max Analog CO’s: 96
  • Max VoIP (H.323) trunks: 32
  • Max VoIP (SIP) trunks: 64
  • Max Total Extensions: 128
  • Max Analog Proprietary Extensions: 24
  • Max Single Line Telephones : 96
  • Max Digital Proprietary extensions: 128 (DT300, T7600 series)
  • Max IP Proprietary Phone extensions: 192
  • Max SIP extensions: 128
  • Multi-Cell Wireless Compatible: Yes
  • Maximum Cell Stations (Antennas): 32
  • Maximum Portable Handsets: 128
  • Direct Station Select (DSS) Consoles: 8
  • Dimensions (H x W x D): 131/3” x 153/4” x 103/4
  • Weight: 26.4

KXTDE_User_Manual-100_200_600

KXTDE_Installation_Manual-100-200

KX-TDE100200Brochure
